cgv::plot::plot2d Class Reference

#include <plot2d.h>

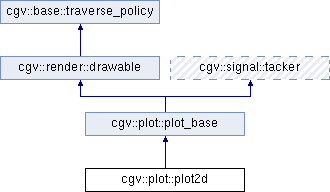

Inheritance diagram for cgv::plot::plot2d:

Public Types
typedef cgv::media::color< float, cgv::media::RGB >	rgb
	declare rgb color type
typedef cgv::media::color< float, cgv::media::RGB, cgv::media::OPACITY >	rgba
	declare rgba color type
typedef cgv::media::color< cgv::type::uint8_type, cgv::media::RGB >	rgb8
	declare rgb color type
typedef cgv::media::color< cgv::type::uint8_type, cgv::media::RGB, cgv::media::OPACITY >	rgba8
	declare rgba color type
typedef cgv::math::fvec< float, 2 >	vec2
	declare type of 2d vectors
typedef cgv::math::fvec< float, 3 >	vec3
	declare type of 3d vectors
typedef cgv::math::fvec< float, 4 >	vec4
	declare type of homogeneous vectors
typedef cgv::math::vec< float >	vecn
	declare type of vector with varying dimension
typedef cgv::math::fmat< float, 2, 2 >	mat2
	declare type of 2x2 matrices
typedef cgv::math::fmat< float, 3, 3 >	mat3
	declare type of 3x3 matrices
typedef cgv::math::fmat< float, 4, 4 >	mat4
	declare type of 4x4 matrices
typedef cgv::math::fmat< float, 3, 4 >	mat34
	declare type of 3x4 matrices which are often used to store a pose
typedef cgv::math::mat< float >	matn
	declare type of matrices of varying dimensions
typedef cgv::math::fvec< double, 2 >	dvec2
	declare type of 2d vectors
typedef cgv::math::fvec< double, 3 >	dvec3
	declare type of 3d vectors
typedef cgv::math::fvec< double, 4 >	dvec4
	declare type of homogeneous vectors
typedef cgv::math::vec< double >	dvecn
	declare type of vector with varying dimension
typedef cgv::math::fmat< double, 2, 2 >	dmat2
	declare type of 2x2 matrices
typedef cgv::math::fmat< double, 3, 3 >	dmat3
	declare type of 3x3 matrices
typedef cgv::math::fmat< double, 4, 4 >	dmat4
	declare type of 4x4 matrices
typedef cgv::math::fmat< double, 3, 4 >	dmat34
	declare type of 3x4 matrices which are often used to store a pose
typedef cgv::math::mat< double >	dmatn
	declare type of matrices of varying dimensions
typedef cgv::media::axis_aligned_box< float, 2 >	box2
	declare type of 2d boxes
typedef cgv::media::axis_aligned_box< float, 3 >	box3
	declare type of 3d boxes
typedef cgv::media::axis_aligned_box< float, 4 >	box4
	declare type of 4d boxes
typedef cgv::media::axis_aligned_box< double, 2 >	dbox2
	declare type of 2d boxes
typedef cgv::media::axis_aligned_box< double, 3 >	dbox3
	declare type of 3d boxes
typedef cgv::media::axis_aligned_box< double, 4 >	dbox4
	declare type of 4d boxes
typedef cgv::math::quaternion< float >	quat
	declare type of quaternion
typedef cgv::math::quaternion< double >	dquat
	declare type of double quaternion
typedef cgv::math::fvec< int32_t, 2 >	ivec2
	declare type of 2d integer vectors
typedef cgv::math::fvec< int32_t, 3 >	ivec3
	declare type of 3d integer vectors
typedef cgv::math::fvec< int32_t, 4 >	ivec4
	declare type of 4d integer vectors
typedef cgv::math::fvec< uint32_t, 2 >	uvec2
	declare type of 2d unsigned integer vectors
typedef cgv::math::fvec< uint32_t, 3 >	uvec3
	declare type of 3d unsigned integer vectors
typedef cgv::math::fvec< uint32_t, 4 >	uvec4
	declare type of 4d unsigned integer vectors

Public Member Functions
	plot2d (const std::string &title, unsigned nr_attributes=0)
	construct 2D plot with given number of additional attributes and default parameters More...
void	hide ()
	hide the drawable
void	show ()
	show the drawable
bool	is_visible () const
	check whether the drawable is visible
context *	get_context () const
	access the current context. The context will be available latestly in the init method but not in the contructor.
void	set_context (context *_ctx)
	set the current focus context, this should only be called by the context itself
cgv::render::view *	find_view_as_node (size_t view_idx=0) const
	convenience function to find the view control in the current hierarchy More...
bool	get_world_location (int x, int y, const cgv::render::view &V, cgv::math::fvec< double, 3 > &world_location, double *window_z_ptr=0) const
	use given view together with depth buffer of context in order to compute the world location of the point at mouse pointer location (x,y) More...
void	post_redraw ()
	posts a redraw event to the current context if one is available
void	force_redraw ()
	forces a redraw right now. This cannot be called from init, init_frame, draw, finish_draw, finish_frame and clear
virtual void	resize (unsigned int w, unsigned int h)
	callback to announce resizing of the output window More...
virtual void	init_frame (context &)
	this method is called in one pass over all drawables before the draw method
virtual void	finish_draw (context &)
	this method is called when the current drawable is left in a tree traversal that calls the draw method
virtual void	finish_frame (context &)
	this method is called in one pass over all drawables after drawing
virtual void	after_finish (cgv::render::context &)
	this method is called in one pass over all drawables after finish frame
int	get_policy () const
	return the policy without the stop on success flag
bool	stop_on_success () const
	return whether to stop on success
bool	stop_on_failure () const
	return whether to stop on failure
void	set_policy (int _policy)
	set a new policy, always add stop on success flag if needed
int	get_focused_child () const
	return the focused child or -1 if none is focused
void	set_focused_child (int _focused_child)
	set the focused child
bool	get_active () const
	return whether the current node is active
void	set_active (bool _active)
	set the active flag of the current node
void	tack (signal_base *s) const
	keep track of the given signal
void	untack (signal_base *s) const
	forget the given signal
void	untack_all () const
	forget all signals
management of sub plots
unsigned	add_sub_plot (const std::string &name)
	add sub plot and return sub plot index
void	delete_sub_plot (unsigned i)
	delete the i-th sub plot
plot2d_config &	ref_sub_plot2d_config (unsigned i=0)
	return a reference to the plot1d configuration of the i-th plot More...
std::vector< vec2 > &	ref_sub_plot_samples (unsigned i=0)
	return the samples of the i-th sub plot
std::vector< unsigned > &	ref_sub_plot_strips (unsigned i=0)
	return the strip definition of the i-th sub plot
bool	init (cgv::render::context &ctx)
	construct shader programs
void	draw (cgv::render::context &ctx)
	draw plot
void	clear (cgv::render::context &ctx)
	destruct shader programs
void	create_point_config_gui (cgv::base::base *bp, cgv::gui::provider &p, plot_base_config &pbc)
	create the gui for a point subplot
void	create_stick_config_gui (cgv::base::base *bp, cgv::gui::provider &p, plot_base_config &pbc)
	create the gui for a stick subplot
void	create_bar_config_gui (cgv::base::base *bp, cgv::gui::provider &p, plot_base_config &pbc)
	create the gui for a bar subplot
void	create_config_gui (cgv::base::base *bp, cgv::gui::provider &p, unsigned i)
	create the gui for a subplot configuration
void	create_gui (cgv::base::base *bp, cgv::gui::provider &p)
	create a gui for the plot with gui for all configs

Public Attributes
bool *	multi_axis_modes
	whether to manage separate axes for each sub plot
vec3	sub_plot_delta
	offset in between sub plots in x, y and z direction

Protected Attributes
std::vector< std::vector< vec2 > >	samples
	store 2d samples for data series
std::vector< std::vector< unsigned > >	strips
	allow to split series into connected strips that are represented by the number of contained samples
cgv::render::attribute_array_manager	aam_domain
	attribute managers for domain rectangles and domain tick labels

font name handling
void	ensure_font_names ()
	ensure that font names have been enumerate
static std::vector< const char * >	font_names
	store a vector with all fonts on the system
static std::string	font_name_enum_def
	concatenate font names to enum definition for dropdown control

placement of plot
quat	orientation
	orientiation quaternion mapping from domain to world coordinates
vec3	center_location
	center location of domain in world coordinates
vec3	world_space_from_plot_space (const vecn &pnt_plot) const
vec3	transform_to_world (const vecn &pnt_attr) const
	transform from attribute space to world space

visual attribute mapping
cgv::media::font::font_ptr	label_font
	store pointer to label font
cgv::media::font::font_face_ptr	label_font_face
	store pointer to label font face
cgv::media::font::font_ptr	title_font
	store pointer to title font
cgv::media::font::font_face_ptr	title_font_face
	store pointer to title font face
cgv::render::vertex_buffer	vbo_legend
	vbo for legend drawing
cgv::render::attribute_array_binding	aab_legend
	manage attributes for legend drawing
std::vector< attribute_source_array >	attribute_source_arrays
	attribute sources
cgv::render::rectangle_render_style	rrs
	render style of rectangles
cgv::render::rectangle_render_style	font_rrs
cgv::render::attribute_array_manager	aam_legend
cgv::render::attribute_array_manager	aam_legend_ticks
cgv::render::attribute_array_manager	aam_title
ivec4	out_of_range_mode
	handling of values that are out of range
int	color_mapping [MAX_NR_COLOR_MAPPINGS]
	index of attribute mapped to primary and secondary color
cgv::media::ColorScale	color_scale_index [MAX_NR_COLOR_MAPPINGS]
	color scale indices of primary and secondary color mapping
float	color_scale_gamma [MAX_NR_COLOR_MAPPINGS]
	gamma adjustments for primary and secondary color mapping
float	window_zero_position [MAX_NR_COLOR_MAPPINGS]
	window space position of zero for primary and secondary color mapping
int	opacity_mapping [MAX_NR_OPACITY_MAPPINGS]
	index of attribute mapped to primary and secondary opacity
float	opacity_gamma [MAX_NR_OPACITY_MAPPINGS]
	gamma adjustments for primary and secondary opacity mapping
bool	opacity_is_bipolar [MAX_NR_OPACITY_MAPPINGS]
	flag whether opacity mapping is bipolar for primary and secondary opacity mapping
float	opacity_window_zero_position [MAX_NR_OPACITY_MAPPINGS]
	window space position of zero for primary and secondary opacity mapping
float	opacity_min [MAX_NR_OPACITY_MAPPINGS]
	minimum opacity value for primary and secondary opacity mapping
float	opacity_max [MAX_NR_OPACITY_MAPPINGS]
	maximum opacity value for primary and secondary opacity mapping
int	size_mapping [MAX_NR_SIZE_MAPPINGS]
	index of attribute mapped to size
float	size_gamma [MAX_NR_SIZE_MAPPINGS]
	and independent gamma adjustments
float	size_min [MAX_NR_SIZE_MAPPINGS]
	min and max of mapped size
float	size_max [MAX_NR_SIZE_MAPPINGS]
void	on_legend_axis_change (cgv::gui::provider &p, cgv::gui::control< int > &ctrl)
void	on_font_selection ()
	callback to change fonts
void	on_font_face_selection ()
	callback to change font face
void	set_plot_uniforms (cgv::render::context &ctx, cgv::render::shader_program &prog)
	set the uniforms for plot configurations
void	set_mapping_uniforms (cgv::render::context &ctx, cgv::render::shader_program &prog)
	set the uniforms for defining the mappings to visual variables
size_t	enable_attributes (cgv::render::context &ctx, int i, const std::vector< std::vector< vec2 >> &samples)
	set vertex shader input attributes based on attribute source information
size_t	enable_attributes (cgv::render::context &ctx, int i, const std::vector< std::vector< vec3 >> &samples)
	set vertex shader input attributes based on attribute source information
void	draw_rectangles (cgv::render::context &ctx, cgv::render::attribute_array_manager &aam, std::vector< box2 > &R, std::vector< rgb > &C, std::vector< float > &D, size_t offset=0)
void	draw_tick_labels (cgv::render::context &ctx, cgv::render::attribute_array_manager &aam_ticks, std::vector< label_info > &tick_labels, std::vector< tick_batch_info > &tick_batches, float depth)
void	disable_attributes (cgv::render::context &ctx, int i)
void	update_samples_out_of_date_flag ()
void	draw_sub_plot_samples (int count, const plot_base_config &spc, bool strip=false)
void	draw_title (cgv::render::context &ctx, vec2 pos, float depth, int si=-1)
void	draw_legend (cgv::render::context &ctx, int layer_idx=0, bool is_first=true, bool *multi_axis_modes=0)
bool	extract_tick_rectangles_and_tick_labels (std::vector< box2 > &R, std::vector< rgb > &C, std::vector< float > &D, std::vector< label_info > &tick_labels, int ai, int ci, int ti, float he, float z_plot, float plot_scale=1.0f, vec2 plot_offset=vec2(0.0f, 0.0f), float d=0.0f, bool multi_axis=true)
void	extract_legend_tick_rectangles_and_tick_labels (std::vector< box2 > &R, std::vector< rgb > &C, std::vector< float > &D, std::vector< label_info > &tick_labels, std::vector< tick_batch_info > &tick_batches, float d, bool clear_cache=false, bool is_first=true, bool *multi_axis_modes=0)
unsigned	get_dim () const
	return nr dimensions of plot
void	set_view_ptr (cgv::render::view *_view_ptr)
	set the view ptr
static const unsigned	MAX_NR_COLOR_MAPPINGS = 2
	define maximum number of color mappings
static const unsigned	MAX_NR_OPACITY_MAPPINGS = 2
	define maximum number of opacity mappings
static const unsigned	MAX_NR_SIZE_MAPPINGS = 2
	define maximum number of size mappings

gui support
void	update_ref_opacity (unsigned i, cgv::gui::provider &p)
void	update_ref_opacity_index (unsigned i, cgv::gui::provider &p)
void	update_ref_size (unsigned i, cgv::gui::provider &p)
void	update_ref_size_index (unsigned i, cgv::gui::provider &p)
void	update_ref_color (unsigned i, cgv::gui::provider &p)
void	update_ref_color_index (unsigned i, cgv::gui::provider &p)
void	add_mapped_size_control (cgv::gui::provider &p, cgv::base::base *bp, const std::string &name, mapped_size &ms, std::string options="")
void	add_mapped_rgb_control (cgv::gui::provider &p, cgv::base::base *bp, const std::string &name, mapped_rgb &ms)
void	add_mapped_rgba_control (cgv::gui::provider &p, cgv::base::base *bp, const std::string &name, mapped_rgba &ms)
void	add_mapped_opacity_control (cgv::gui::provider &p, cgv::base::base *bp, const std::string &name, mapped_opacity &ms)
virtual void	create_plot_gui (cgv::base::base *bp, cgv::gui::provider &p)
	create the gui for the plot without gui for sub plots
virtual void	create_base_config_gui (cgv::base::base *bp, cgv::gui::provider &p, unsigned i)
	create the gui for base subplot settings
virtual void	create_line_config_gui (cgv::base::base *bp, cgv::gui::provider &p, plot_base_config &pbc)
	create the gui for a line subplot

Detailed Description

The plot2d class draws 2d plots with potentially several sub plots of different chart types

Constructor & Destructor Documentation

plot2d()

cgv::plot::plot2d::plot2d	(	const std::string &	title,
		unsigned	nr_attributes = 0
	)

construct 2D plot with given number of additional attributes and default parameters

construct empty plot with default domain [0..1,0..1]

Member Function Documentation

find_view_as_node()

cgv::render::view * cgv::render::drawable::find_view_as_node ( size_t  view_idx = 0 ) const

inherited

convenience function to find the view control in the current hierarchy

this only works if your class inherits from the cgv::base::node class.

get_world_location()

bool cgv::render::drawable::get_world_location ( int  x, int  y, const cgv::render::view &  V, cgv::math::fvec< double, 3 > &  world_location, double *  window_z_ptr = 0  ) const

inherited

use given view together with depth buffer of context in order to compute the world location of the point at mouse pointer location (x,y)

returns true if a world location could be computed which is the case when the context pointer of the drawable has been set and when the mouse location points inside a valid view panel.

ref_sub_plot2d_config()

plot2d_config & cgv::plot::plot2d::ref_sub_plot2d_config

(

unsigned

i = 0

)

return a reference to the plot1d configuration of the i-th plot

return a reference to the plot base configuration of the i-th plot

resize()

void cgv::render::drawable::resize ( unsigned int  w, unsigned int  h  )

virtualinherited

callback to announce resizing of the output window

callback to anounce resizing of the output window

---

The documentation for this class was generated from the following files:

• D:/develop/projects/git/cgv/libs/plot/plot2d.h
• D:/develop/projects/git/cgv/libs/plot/plot2d.cxx
